Product model	EMT2
Cargo box Volume	1.1m³
Rated load capacity	2000kg
Unloading height	2250mm
loading height	1250mm
Ground clearance	240mm
Turning radius	4800mm
Wheel track	1350mm
Climbing ability (heavy load)

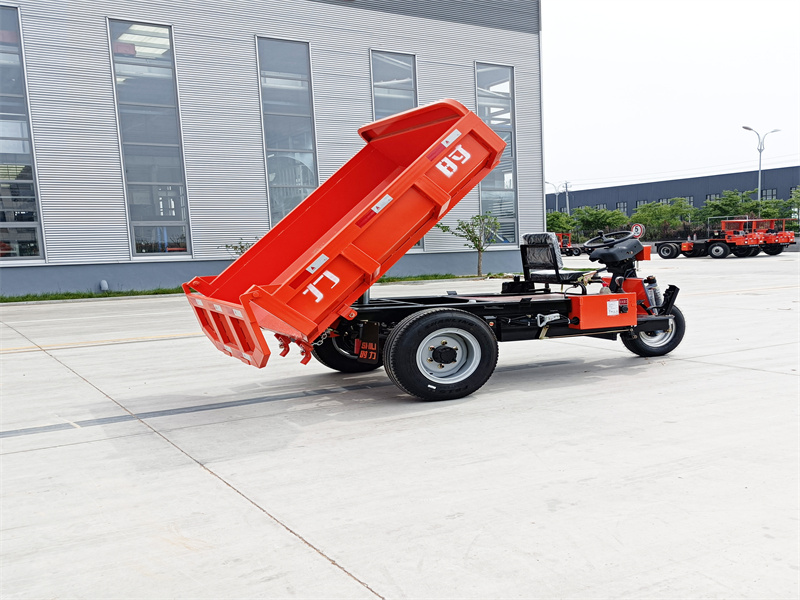

Maximum lift angle of the cargo box	45±2°
Tire model	Front tire 500-14/rear tire 650-14(wire tire)
shock absorption system	Front: Damping Double shock absorber Rear: 13 thickened leaf springs
Operation   system	Medium plate (rack and pinion type)
Controlsystem	ntelligent controller
Lighting system	Front and rear LED lights
Maximum   Speed	25km/h
Motor   model/power	AC  5000W
No. Battery	9 pieces, 8V,150Ah maintenance-free
Voltage	72V
Overall dimension	ength3500mm*width         1380mm*height1250mm
Cargo  box  dimension(outer  diameter  )	Length    2000mm*width    1380mm*height450mm
Cargo box plate thickness	3mm
Frame	Rectangular tube welding
Overall weight	1160kg

1. Does the vehicle meet safety standards? Certainly! Our mining dump trucks have successfully met all international safety standards and have undergone an extensive safety testing and certification process. 2. Can I customize the configuration? Yes, we can customize the configuration according to customer needs to meet the needs of different work scenarios. 3. Which materials are used in body building? We use high-strength wear-resistant materials to build our bodies, ensuring good durability in harsh working environments. 4. What are the areas covered by after-sales service? Our extensive after-sales service coverage allows us to support and service customers around the world.We offer a comprehensive after-sales service, including: 1. Give customers comprehensive product training and operation guidance to ensure that customers can correctly use and maintain the dump truck. 2. Provide rapid response and problem solving technical support team to ensure that customers are not troubled in the process of use. 3. Provide original spare parts and maintenance services to ensure that the vehicle can maintain good working condition at any time. 4. Regular maintenance services to extend the life of the vehicle and ensure that its performance is always maintained at its best.The front tire is 500-14, and the rear tire is 650-14, both of which are wire tires for added durability and traction in mining conditions. The truck is equipped with a damping double shock absorber in the front and 13 thickened leaf springs at the rear, ensuring a smoother and stable ride.For operation, it features a medium plate (rack and pinion type) and an intelligent controller for precise control. The lighting system includes front and rear LED lights, providing visibility during operations.The turning radius of the EMT2 is 4800mm, providing it with good maneuverability in tight spaces. The wheel track is 1350mm, and it has a climbing ability suitable for handling heavy loads. The cargo box can be lifted to a maximum angle of 45±2° for efficient unloading.The EMT2 features a high performance AC 5000W motor powered by nine reliable 8V, 150Ah batteries. The powerful electrical system has an output voltage of 72V, allowing the truck to reach a top speed of 25 km/h. In addition, the batteries are maintenance-free, requiring no regular maintenance. The overall size of EMT2 is 3500mm in length, 1380mm in width and 1250mm in height. Its cargo box has an outer diameter of 2000 mm, a width of 1380 mm and a height of 450 mm, and is made of strong 3 mm thick plates. The truck's frame is welded from rectangular tubing for long-lasting toughness and reliability.The overall weight of the EMT2 is 1160kg, which, combined with its robust design and impressive load capacity, makes it a reliable and efficient solution for mining applications.
